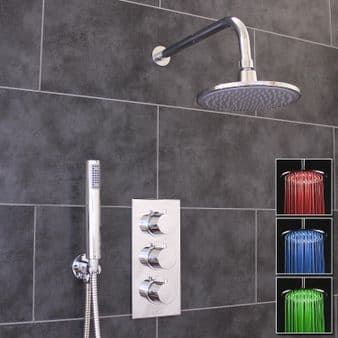

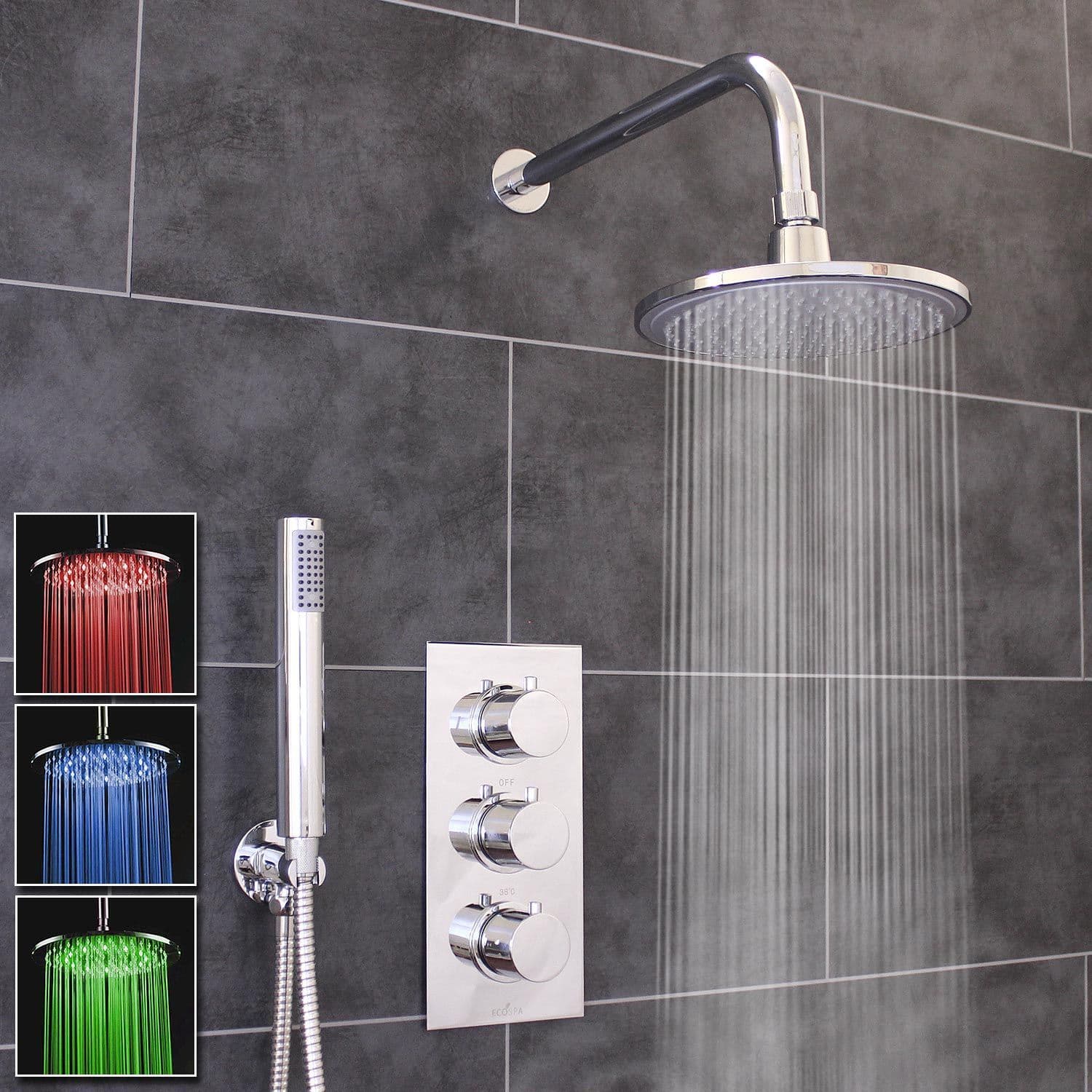

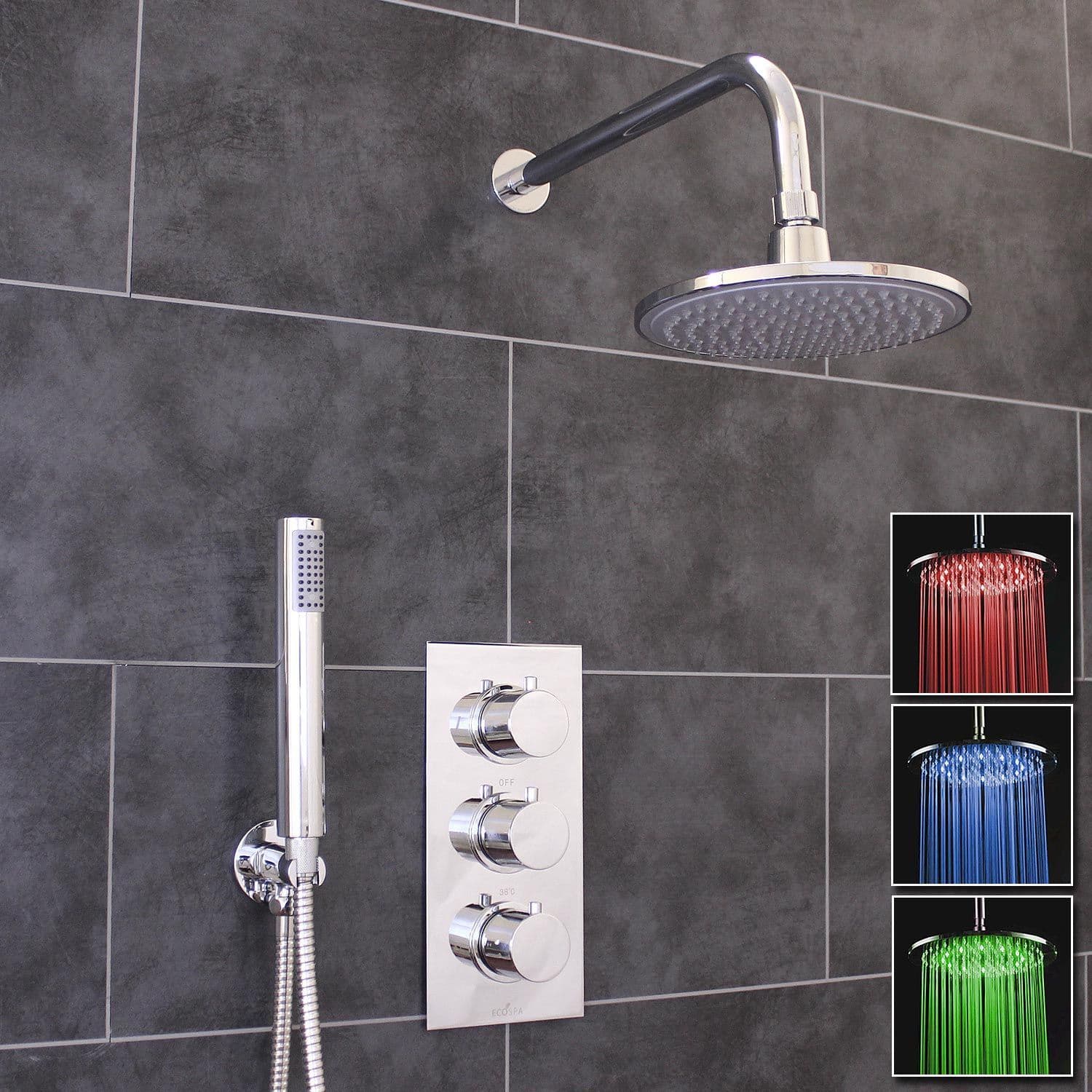

Thermostatic 2 Way Shower Valve, Round Handles, Round LED Overhead Drencher & Handset
Product Code: GR005_020
Brand: EcoSpa
Finish: Chrome
Outlets: 2
Type: Concealed Valve
Features: Eco Friendly
MPN: GR005_020
Outlets: 2
Type: Concealed Valve
Features: Eco Friendly
MPN: GR005_020
£159.95
including VAT
RRP: £352.00
Saving you a total of £192.05 (55%) until our offer ends
- Description
- Related Products
- Reviews
ECOSPA Thermostatic 2 Way Shower Valve & LED Kit
Shower Valve Benefits
Thermostatic Mixer Valve
allows for a user set temperature that will remain constant regardless of any change in water pressure. e.g. due to a toilet being flushed, which would normally cause a fluctuation in temperature
Anti-Scalding Device
shower valves are pre-set at a safe temperature of 38C, which is especially useful for children or the elderly who generally have thinner skin, allowing them to shower safely without being scalded
shower valves are pre-set at a safe temperature of 38C, which is especially useful for children or the elderly who generally have thinner skin, allowing them to shower safely without being scalded
2-Way Mixer
this particular shower valve allows users to switch between a shower overhead or handset
this particular shower valve allows users to switch between a shower overhead or handset
Features

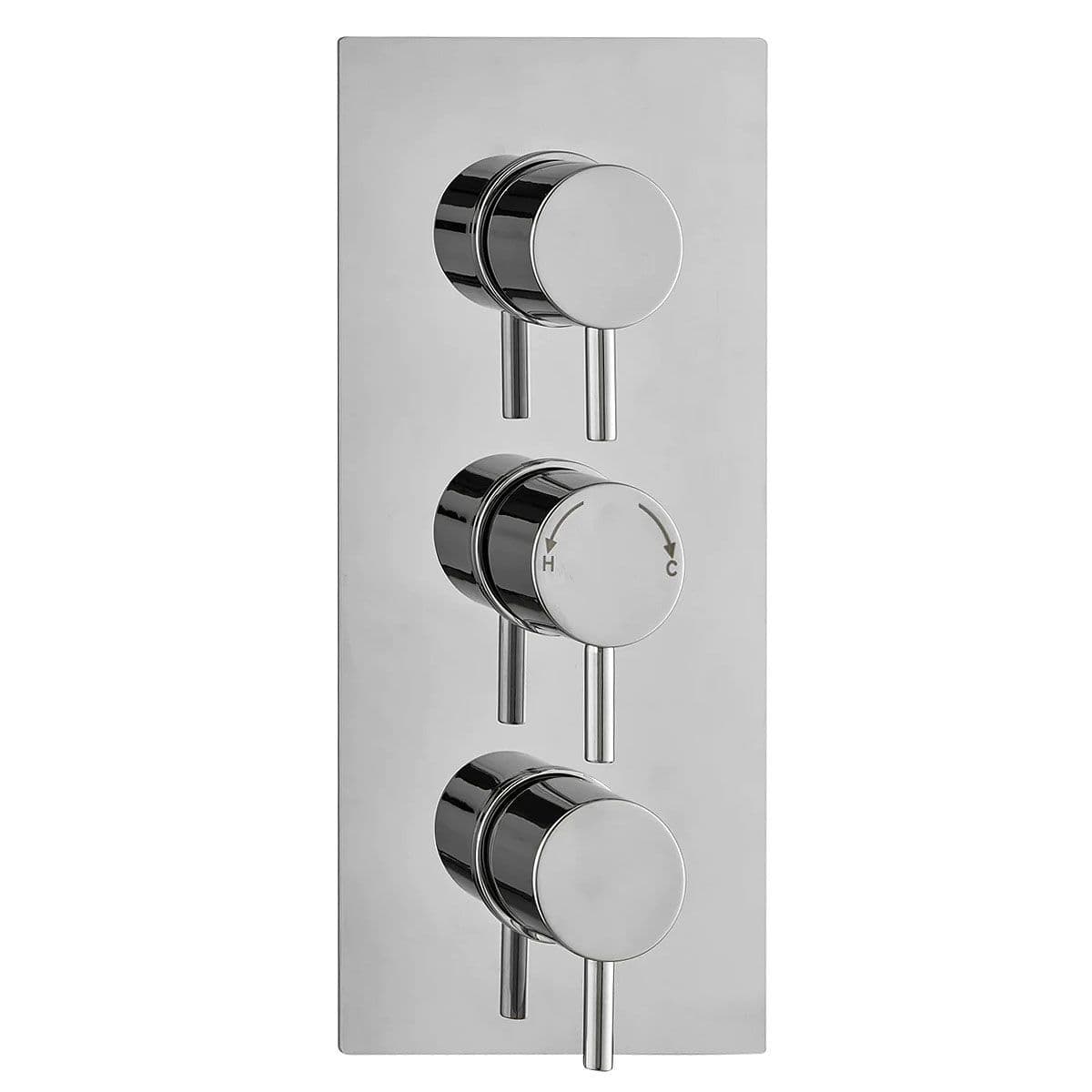

2-Way Thermostatic Mixer Valve, with 3 round handles
2-Way function allows to switch between shower overhead and shower handset
Polished mirror chrome finish that will look absolutely stunning in any bathroom setting
Thermostatic Control with built-in Anti Scalding Device - water temperature set at 38C that can be overridden
Integrated technology makes this shower valve energy efficient
Ergonomically designed round handles provide an easy comfortable grip
British standard fittings

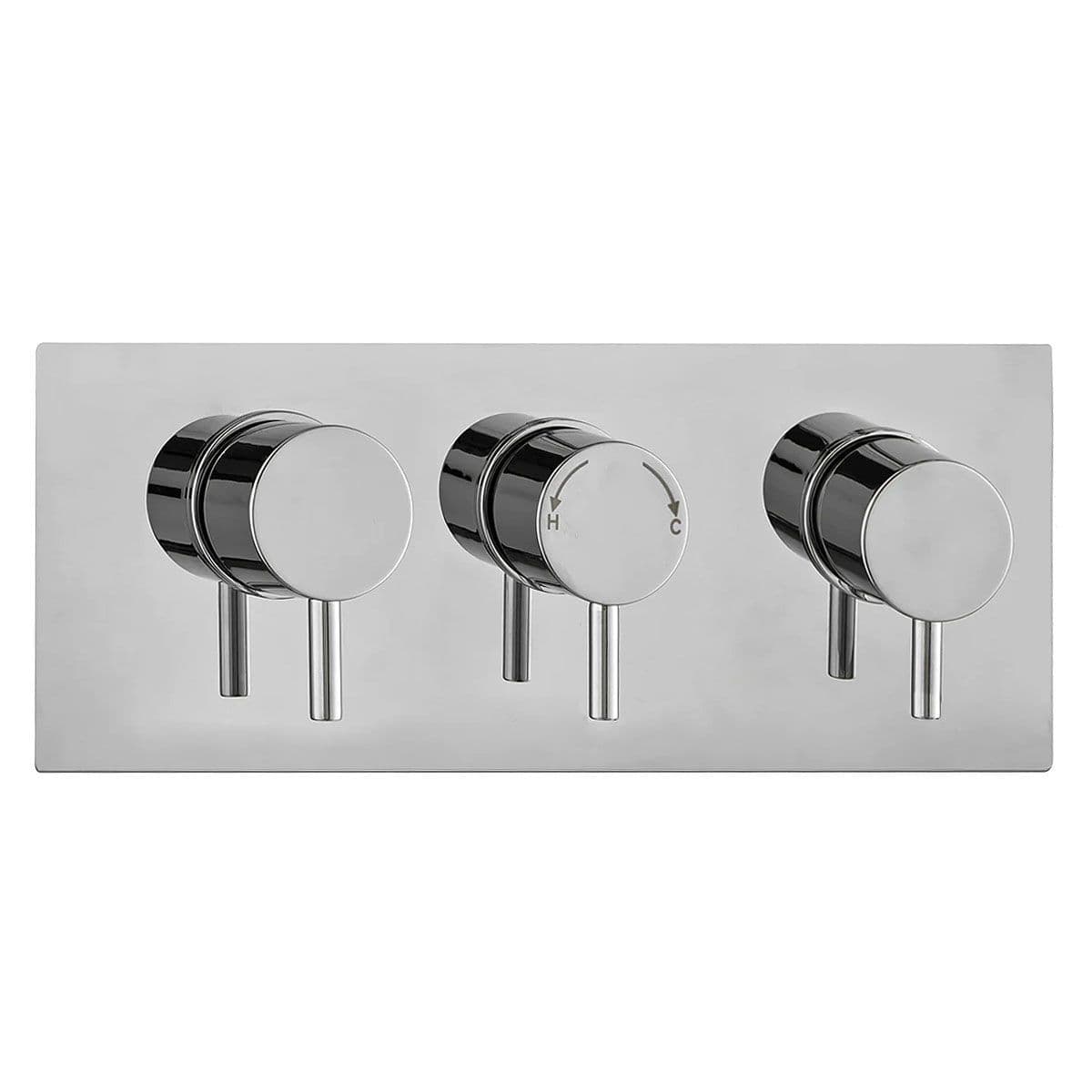

Can be fitted vertically or horizontally
WRAS Approved
Water temperature ranges between 20C - 50C
Easy smooth turning ceramic disc technology

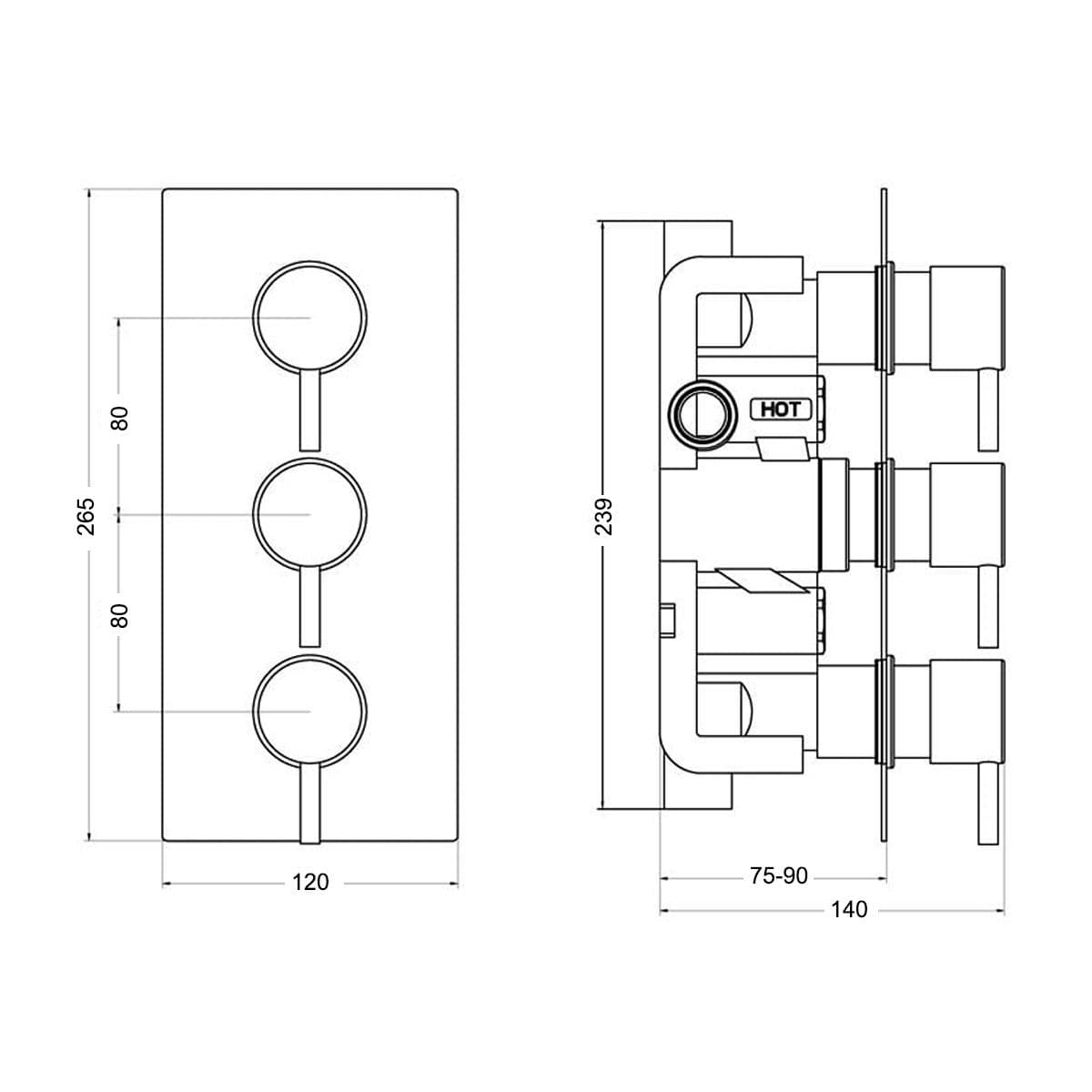

Valve Measurements (L x W): 265mm x 120mm
360 degrees swivel & tilt round LED shower head
Easy to clean anti-limescale rubber nozzles
340mm round shower arm
Round 'microphone' style single mode ABS plastic handset
Chrome wall connector elbow with built-in handset holder
Flexible metal shower hose
Easy to clean anti-limescale rubber nozzles
340mm round shower arm
Round 'microphone' style single mode ABS plastic handset
Chrome wall connector elbow with built-in handset holder
Flexible metal shower hose
LED Features
Three LED Colours (Red, Blue & Green)
No batteries required, powered by water flow
Quiet in operation
LED - colour changes dependant on temperature
Very Hot - LED flashes red
Hot - LED will be red
Medium - LED will be green
Cold - LED will be blue
Flow Rates
0.5 bar - 09.6 litres per minute
1.0 bar - 14.1 litres per minute
2.0 bar - 20.5 litres per minute
3.0 bar - 24.8 litres per minute
4.0 bar - 28.3 litres per minute
5.0 bar - 32.0 litres per minute
Working Requirements
The thermostatic shower works on water systems that produce a minimum of 1.0 bar water pressure. This can be achieved by using one of the following systems:
The thermostatic shower works on water systems that produce a minimum of 1.0 bar water pressure. This can be achieved by using one of the following systems:
Combination boiler systems
Gravity fed systems (only with a universal or negative head pump)
Megaflow system
Pumped hot water systems
Standard pressurized hot water cylinder type systems
Guarantee
Thermostatic mixer valves have a 3 year guarantee if installed by a qualified plumber in a domestic setting. This does not cover accidental damage, improper use, negligence, general wear and tear or poor installations and consequential losses will never be covered. None of the above effect your statutory rights. We also advise that you wait for your goods to arrive and inspect them before booking a qualified plumber.
Please Read
Please note that on occasions we replace parts of this shower kit with substitute items when suppliers stock have sold out. If there is a change in appearance to the shower valve we will upload a replacement image to illustrate the changes along with a technical specification. The main image will remain the same, but we ask that you view the valve images to ensure that you are happy before purchasing the product.
