MX Easy Fit Kit HMK

Easy to Fit
Allows for Adjustment when installing Bar Mixer Valves

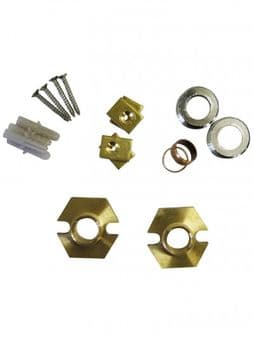

Everything you need in one box

1 Year Guarantee

Description:

A fast fit fixing kit for bar valve showers aimed at easing the installation of bar shower valves.
Removes the need for in wall support battens
Reduced chance of in wall leakage as all joints are outside of the wall
Suitable for all UK manufactured bar valves

Fitting Instructions:

First check the thermostatic mixer valve (TMV) you are fitting has inlets at approximately 150mm centres and it has 3/4" thread fittings (Most showers do).

1. Fit inlet pipes in 15mm copper tube so the outlets are at 150mm centres using the template which is provided and the tube protrudes at 30mm +/1 2mm from the finished surface tile. The inlet pipes should be fitted to allow about 2mm adjustment in each direction with a hole through the tiles of approximately 20mm diameter.

2. Fit the wall plate over the copper tube and mark a suitable place to drill the holes. Drill the holes and fit the wall plugs, then using the screw okate fit the screws to hold the wall plate lightly in the required position. The screw plate allows for some adjustment of the fittings to fit and level the mixer valve.

3. Fit the olive, it should protrude by at least 4mm from the wall plate. Whilst holding the wall plate with a spanner (40mm) tighten up the chrome plated threaded adaptor with a 22mm spanner up to the adjustable screw plates so the olive seals on the 15mm tube.

4. Check the TMV fits to the wall plates and adjust for the level then tighten the screws. Fit the cover plates which will be provided with your thermostatic bar valve and attached the bar using the washers provided with the bar valve
