Concealed Twin Thermostatic Chrome Shower Mixer Valve 2 Outlets LED Round Head
Product Code: GR003_020
Brand: EcoSpa
Finish: Chrome
Outlets: 2
Type: Concealed Valve
Features: Eco Friendly
MPN: GR003_020
Outlets: 2
Type: Concealed Valve
Features: Eco Friendly
MPN: GR003_020
£129.95
including VAT
RRP: £350.00
Saving you a total of £220.05 (63%) until our offer ends
- Description
- Related Products
- Reviews
ECOSPA Thermostatic 2 Way Shower Valve & LED Kit
Shower Valve Benefits
Thermostatic Mixer Valve
allows for a user set temperature that will remain constant regardless of any change in water pressure. e.g. due to a toilet being flushed, which would normally cause a fluctuation in temperature
Anti-Scalding Device
shower valves are pre-set at a safe temperature of 38C, which is especially useful for children or the elderly who generally have thinner skin, allowing them to shower safely without being scalded
shower valves are pre-set at a safe temperature of 38C, which is especially useful for children or the elderly who generally have thinner skin, allowing them to shower safely without being scalded
2-Way Mixer
this particular shower valve allows users to switch between a shower overhead or handset
this particular shower valve allows users to switch between a shower overhead or handset
Features

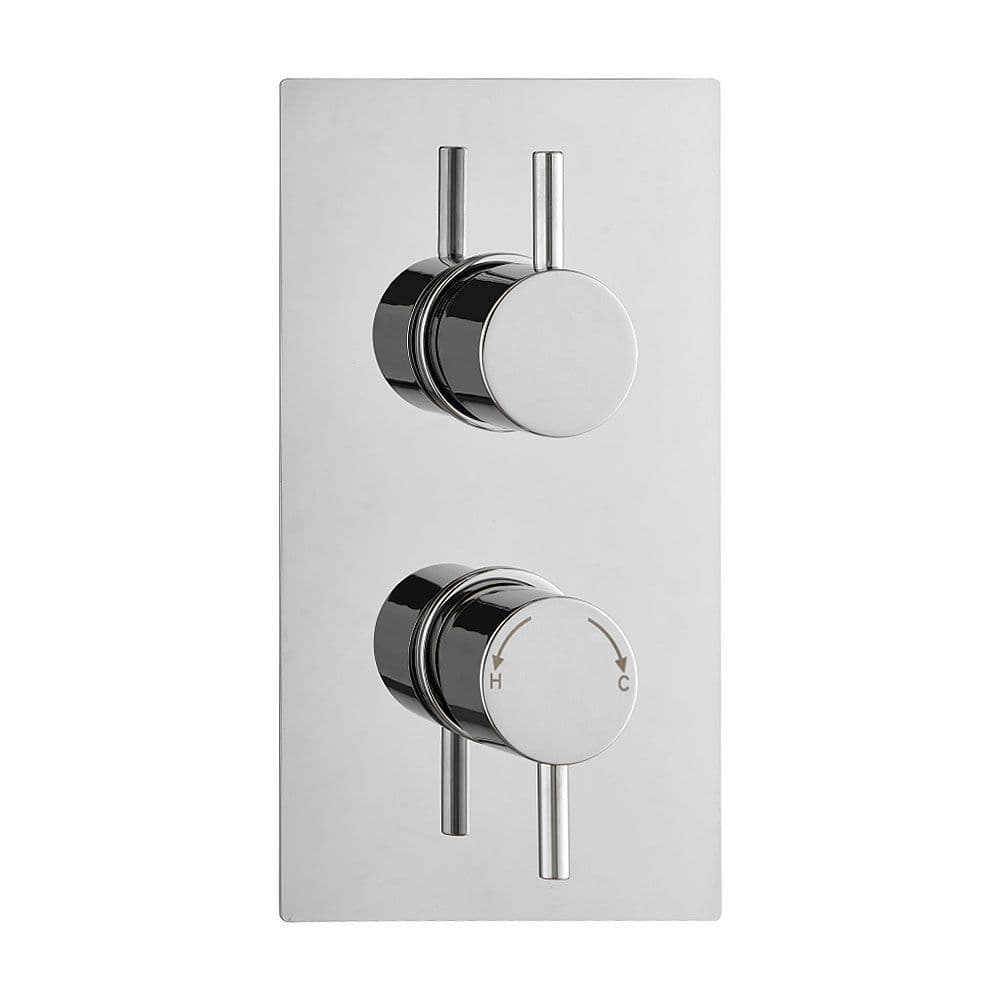

- 2-Way Thermostatic Mixer Valve, with 2 round handles
- 2-Way function allows to switch between shower overhead and shower handset
- Polished mirror chrome finish that will look absolutely stunning in any bathroom setting
- Thermostatic Control with built-in Anti Scalding Device - water temperature set at 38C that can be overridden
- Integrated technology makes this shower valve energy efficient
- Ergonomically designed round handles provide an easy comfortable grip
- British standard fittings
- Can be fitted vertically or horizontally
- WRAS Approved
- Water temperature ranges between 20C - 50C
- Easy smooth turning ceramic disc technology

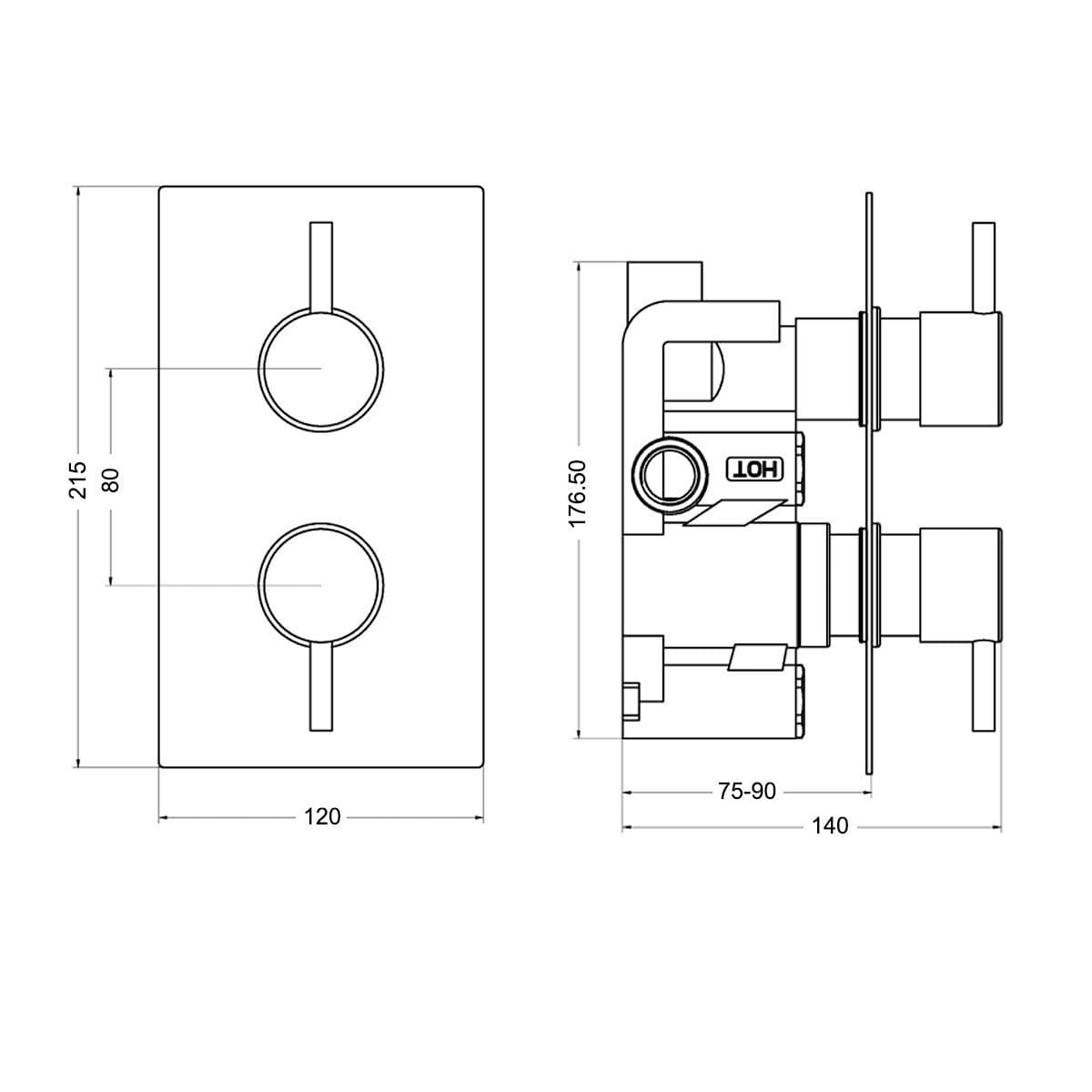

- Valve Measurements (L x W x D): 215mm x 120mm x 140mm
- 360 degrees swivel & tilt round LED shower head
- Easy to clean anti-limescale rubber nozzles
- 340mm round shower arm
- Round 'microphone' style single mode ABS plastic handset
- Chrome wall connector elbow with built-in handset holder
- Flexible metal shower hose

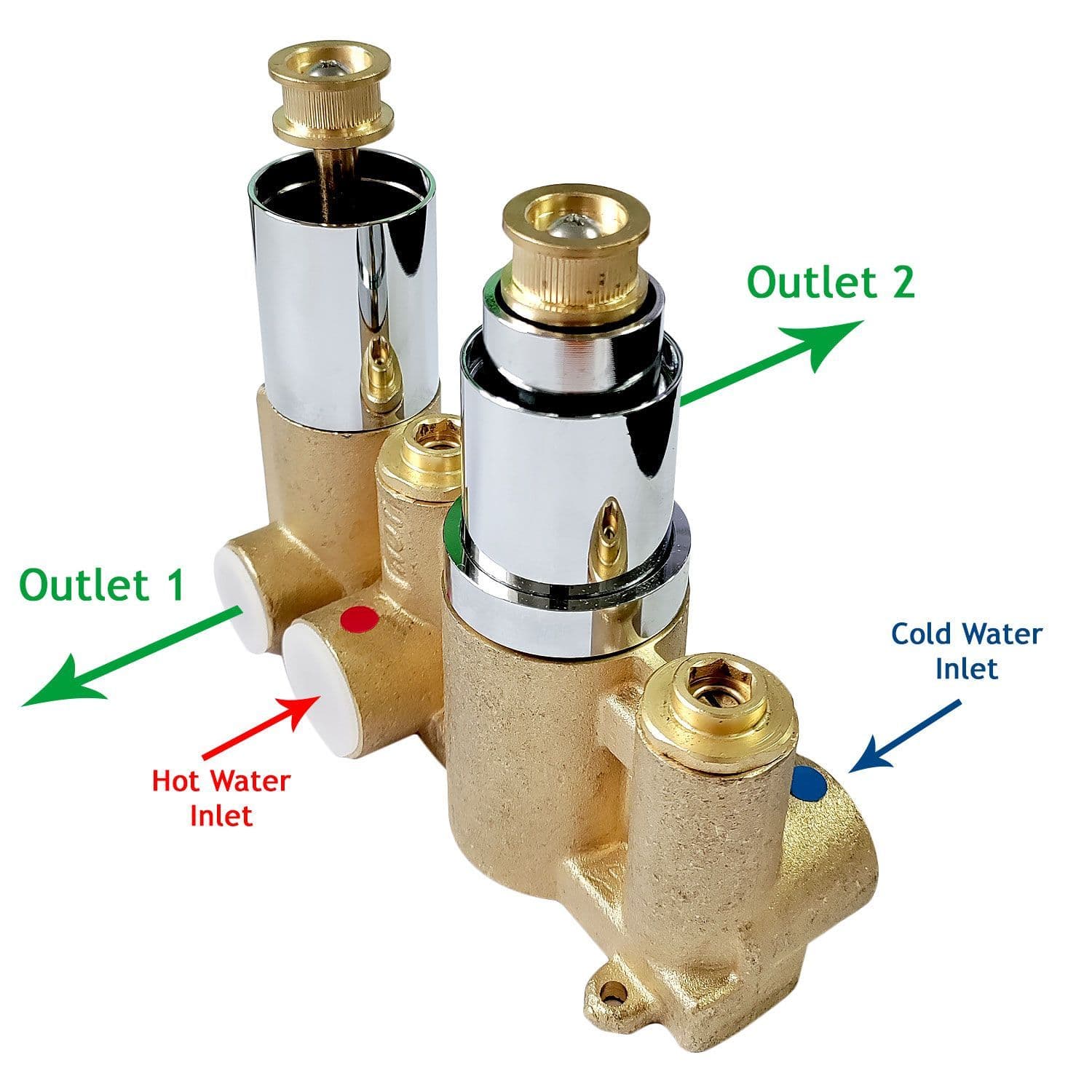

- You will receive the shower valve that is illustrated in the 5th image
LED Features
- Three LED Colours (Red, Blue & Green)
- No batteries required, powered by water flow
- Quiet in operation
- LED - colour changes dependant on temperature
- Very Hot - LED flashes red
- Hot - LED will be red
- Medium - LED will be green
- Cold - LED will be blu
Flow Rates
- 0.5 bar - 07.80 litres per min
- 1.0 bar - 11.20 litres per min
- 2.0 bar - 16.00 litres per min
- 3.0 bar - 19.70 litres per min
- 4.0 bar - 23.00 litres per min
- 5.0 bar - 25.70 litres per min
Working Requirements
The thermostatic shower works on water systems that produce a minimum of 1.0 bar water pressure. This can be achieved by using one of the following systems:
The thermostatic shower works on water systems that produce a minimum of 1.0 bar water pressure. This can be achieved by using one of the following systems:
- Combination boiler systems
- Gravity fed systems (only with a universal or negative head pump)
- Megaflow system
- Pumped hot water systems
- Standard pressurized hot water cylinder type systems
Guarantee
Thermostatic mixer valves have a 3 year guarantee if installed by a qualified plumber in a domestic setting. This does not cover accidental damage, improper use, negligence, general wear and tear or poor installations and consequential losses will never be covered. None of the above effect your statutory rights. We also advise that you wait for your goods to arrive and inspect them before booking a qualified plumber.
Please Read
Please note that on occasions we replace parts of this shower kit with substitute items when suppliers stock have sold out. If there is a change in appearance to the shower valve we will upload a replacement image to illustrate the changes along with a technical specification. The main image will remain the same, but we ask that you view the valve images to ensure that you are happy before purchasing the product.
