Concealed Thermostatic Shower Mixer Chrome 1 Way Outlet Round LED Overhead WRAS
Product Code: GR002_020
Brand: EcoSpa®
Finish: Chrome
Outlets: 1
Type: Concealed Valve
Features: Eco Friendly
MPN: GR002_020
Outlets: 1
Type: Concealed Valve
Features: Eco Friendly
MPN: GR002_020
£110.95
including VAT
RRP: £270.00
Saving you a total of £159.05 (59%) until our offer ends
- Description
- Related Products
- Reviews

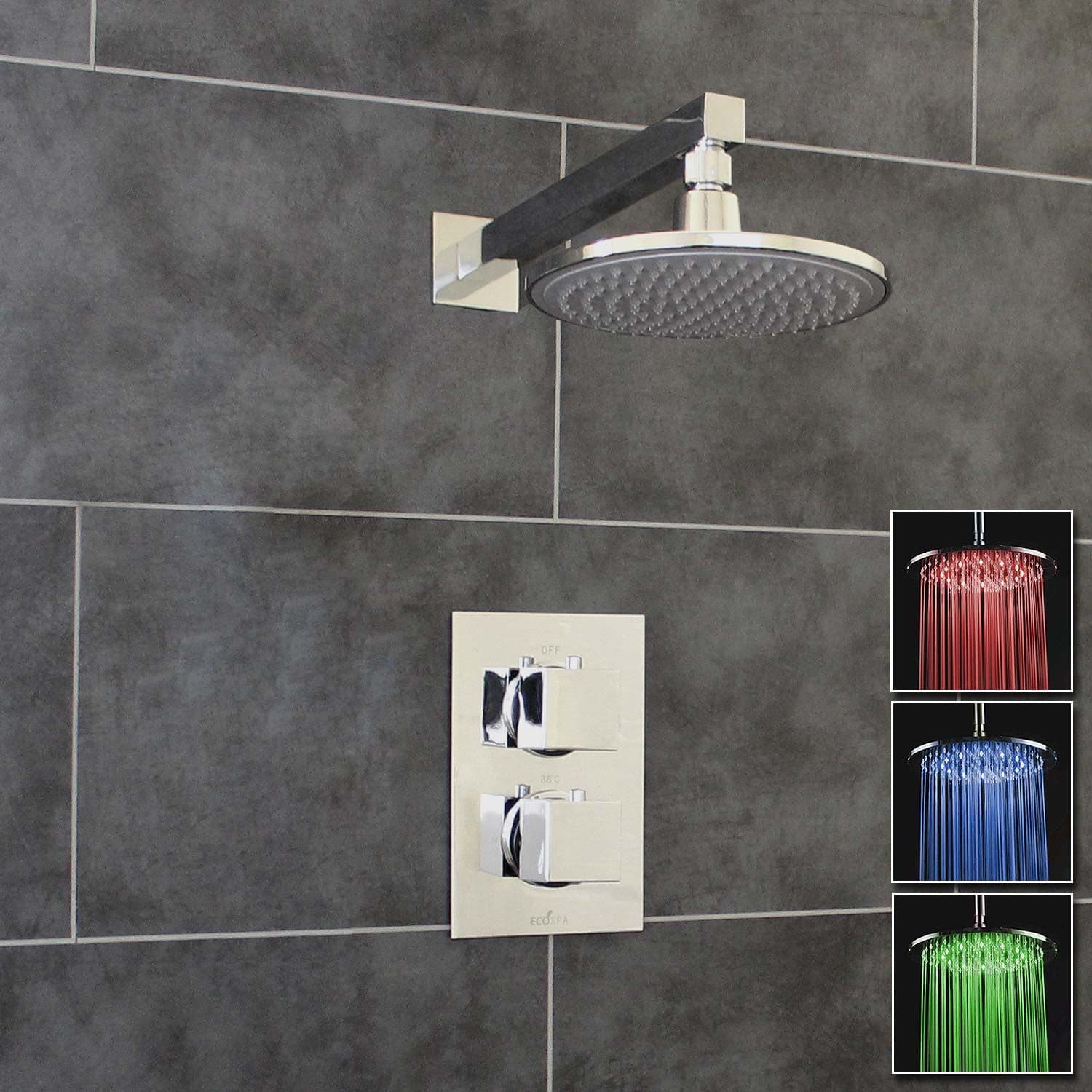

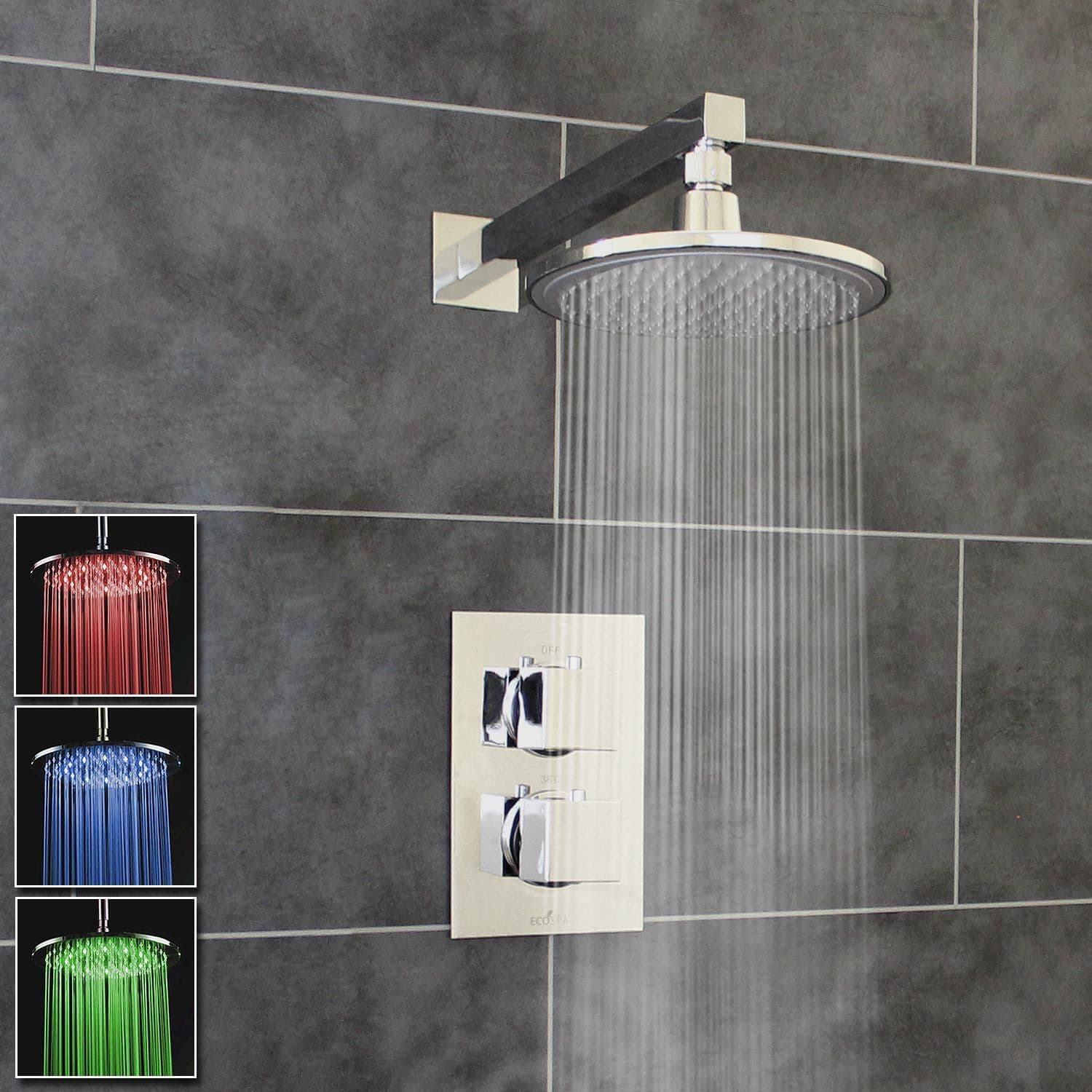

ECOSPA Thermostatic 1 Way Shower Valve with Round LED Overhead
Shower Valve Benefits
Thermostatic Mixer Valve
allows for a user set temperature that will remain constant regardless of any change in water pressure. e.g. due to a toilet being flushed, which would normally cause a fluctuation in temperature
Anti-Scalding Device
shower valves are pre-set at a safe temperature of 38C, which is especially useful for children or the elderly who generally have thinner skin, allowing them to shower safely without being scalded
shower valves are pre-set at a safe temperature of 38C, which is especially useful for children or the elderly who generally have thinner skin, allowing them to shower safely without being scalded
1-Way Mixer
this particular shower valve allows users to install a shower overhead (popular choice) or a shower kit
this particular shower valve allows users to install a shower overhead (popular choice) or a shower kit
Features
1-Way Thermostatic Mixer Valve, with 2 round handles
1-Way function allows installation of a shower overhead or shower kit
Polished mirror chrome finish that will look absolutely stunning in any bathroom setting
Thermostatic Control with built-in Anti Scalding Device - water temperature set at 38C
Integrated technology makes this shower valve energy efficient
Ergonomically designed round handles provide an easy comfortable grip
British standard fittings
Can be fitted vertically or horizontally
Water Pressure: 0.1 bar to 5.0 bar (we recommend a min of 0.5 bar)
WRAS & TMV2 Approved
Easy smooth turning ceramic disc technology
360 degrees swivel & tilt round LED shower head
Easy to clean anti-limescale rubber nozzles
340mm round shower arm
Easy to clean anti-limescale rubber nozzles
340mm round shower arm

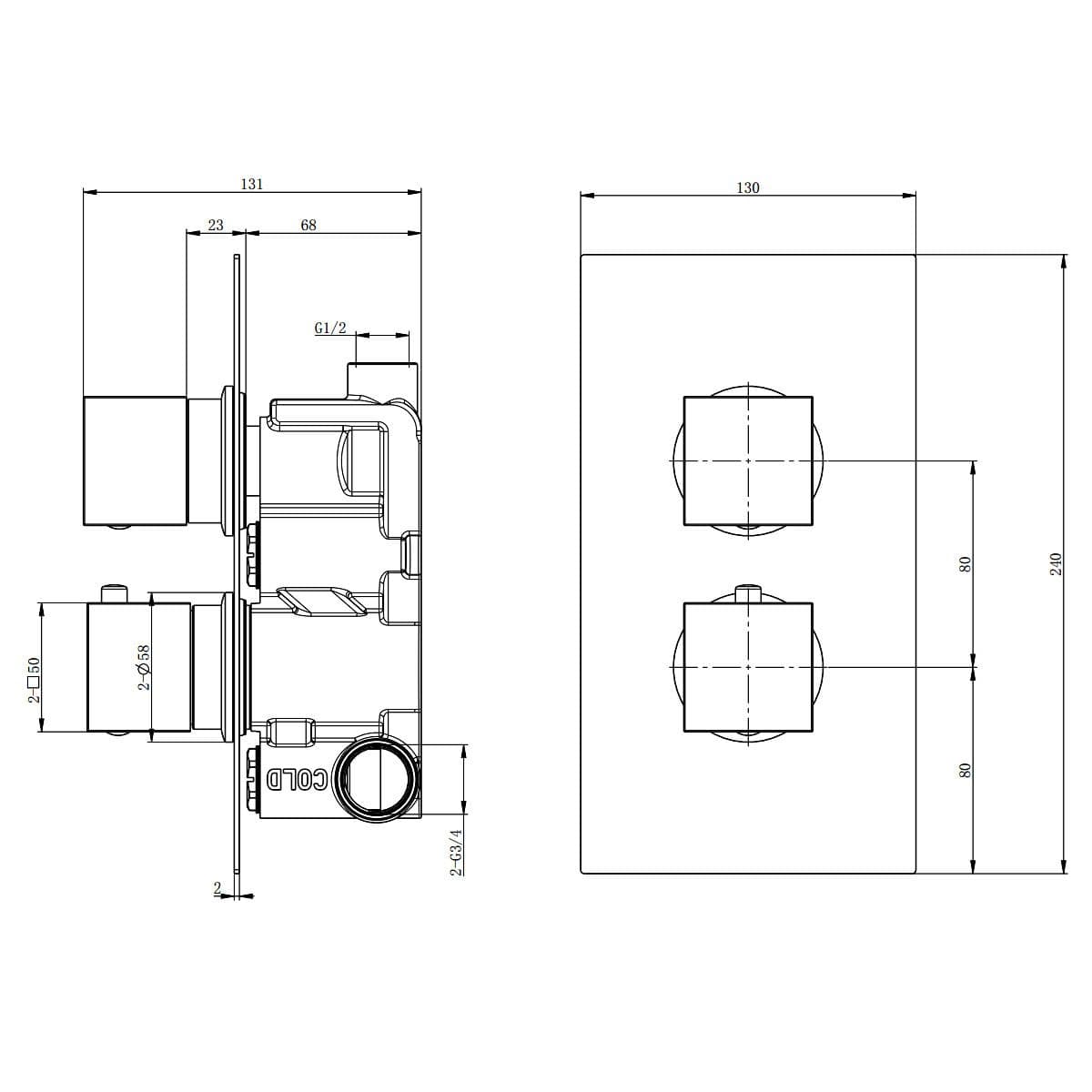

Technical
Inlet: 3/4"
Outlet: 1/2"
Plate Dimensions: 240mm x 130mm
Plate Dimensions: 240mm x 130mm
Concealed Valve Depth: *68-91mm
* - flexible by 23mm to allow for various wall thicknesses
Flow Rates
0.1 bar - 5.80 litres per minute
0.2 bar - 7.40 litres per minute
0.3 bar - 8.70 litres per minute
0.5 bar - 11.1 litres per minute
0.3 bar - 8.70 litres per minute
0.5 bar - 11.1 litres per minute
1.0 bar - 15.5 litres per minute
1.5 bar - 18.9 litres per minute
1.5 bar - 18.9 litres per minute
2.0 bar - 21.8 litres per minute
3.0 bar - 26.5 litres per minute
4.0 bar - 30.5 litres per minute
5.0 bar - 33.8 litres per minute
Working Requirements
The thermostatic shower works on water systems that produce a minimum of 0.1 bar water pressure. This can be achieved by using one of the following systems:
The thermostatic shower works on water systems that produce a minimum of 0.1 bar water pressure. This can be achieved by using one of the following systems:
Combination boiler systems
Gravity fed systems (only with a universal or negative head pump)
Megaflow system
Pumped hot water systems
Standard pressurized hot water cylinder type systems
Guarantee
Thermostatic mixer valves have a 3 year guarantee if installed by a qualified plumber in a domestic setting. This does not cover accidental damage, improper use, negligence, general wear and tear or poor installations and consequential losses will never be covered. None of the above effect your statutory rights. We also advise that you wait for your goods to arrive and inspect them before booking a qualified plumber.
Please Read
Please note that on occasions we replace parts of this shower kit with substitute items when suppliers stock have sold out. If there is a change in appearance to the shower valve we will upload a replacement image to illustrate the changes along with a technical specification. The main image will remain the same, but we ask that you view the valve images to ensure that you are happy before purchasing the product.
